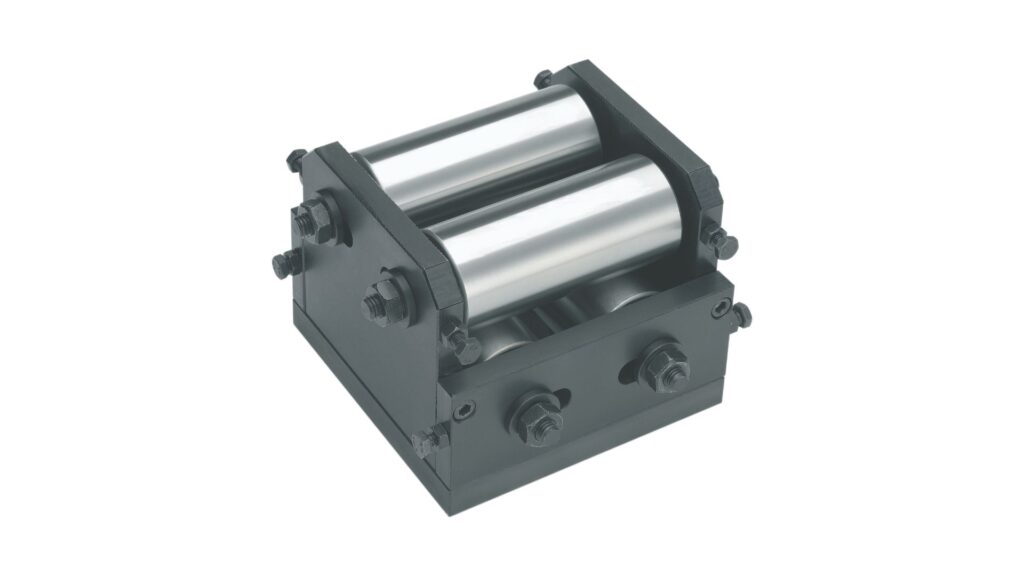

COMETO GQ Model Wire Guide
The Cometo GQ model wire guide is a compact, simple, and effective solution for guiding wires or cables with diameters ranging from 3 mm to 30 mm. Thanks to its versatility and reliability, the GQ model is ideal for numerous industrial applications, ensuring precision and long-term durability.
Key Features
- Versatile Applications
The GQ wire guide is designed for easy integration into various industrial machines and systems, including:
- Dry drawing machines
- Single-block drawing dies
- Straightening machines
- Wire treatment tanks
- Stamping and bending machines
- Any application requiring precise wire or cable guidance
- Robust and Adjustable Design
- Equipped with four adjustable rollers, ensuring precise control of the material being processed.
- The rollers are hardened and ground, with a core hardness of 61-62 HRC, providing exceptional wear resistance and long-lasting performance.
- Available Sizes
The GQ wire guide is available in five different sizes, allowing for the passage of wires with diameters up to 30 mm, making it adaptable to a wide range of operational needs.
- Low Maintenance
Minimal maintenance required, limited to roller and bearing replacement once they are worn.
Fast delivery of spare parts, always available in stock, minimizing machine downtime.
For further technical details or specific requests, our technical team is always available to assist you.
Diameter from-to:
GQ050 0-5
GQ102 0-10
GQ142 0-18
GQ202 0-25
GQ301 0-30
